Torque

3D reconstruction

In late 2017, when I had some time to spare, I bought a cordless drill at a local store, disassembled it and re-built it piece by piece in SolidWorks. This involved calipers, a microscope, reference photography and many hours of involved CAD modelling.

Client
Personal project
Year
2017
Torque, complete assembly.
Torque, complete assembly.

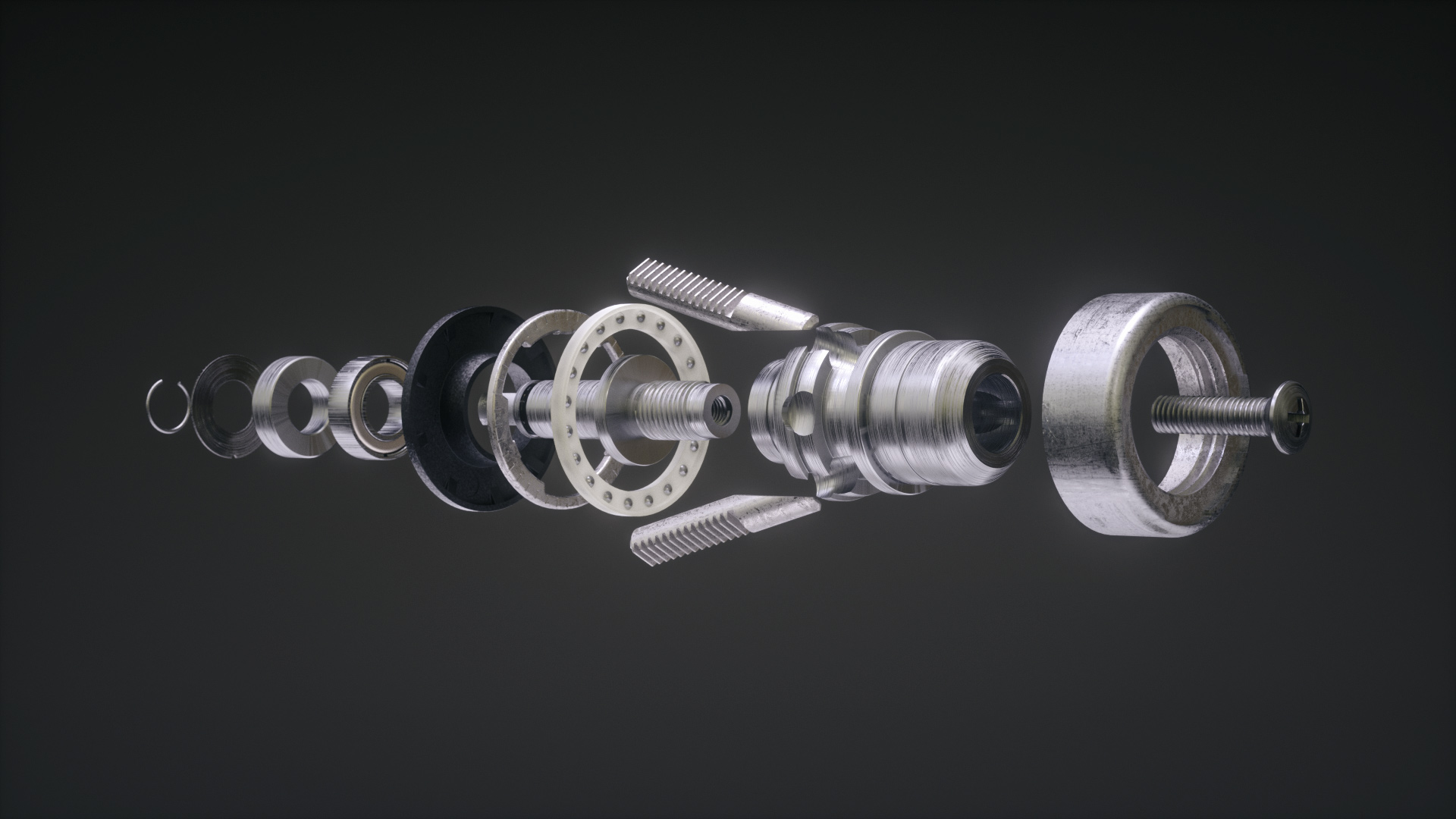

Torque, chuck assembly
Torque, chuck assembly

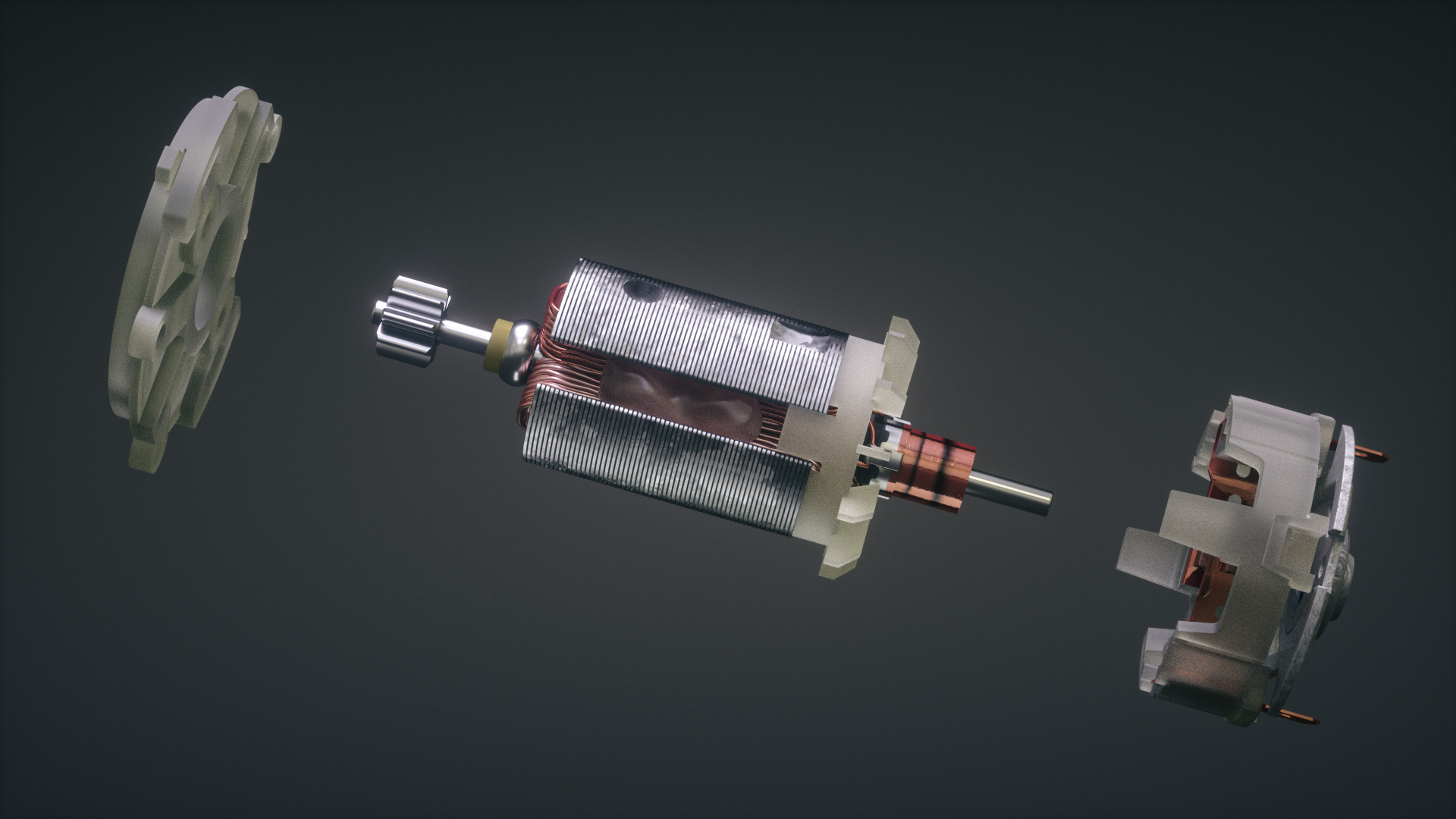

Torque, RS550 rotor subassembly
Torque, RS550 rotor subassembly

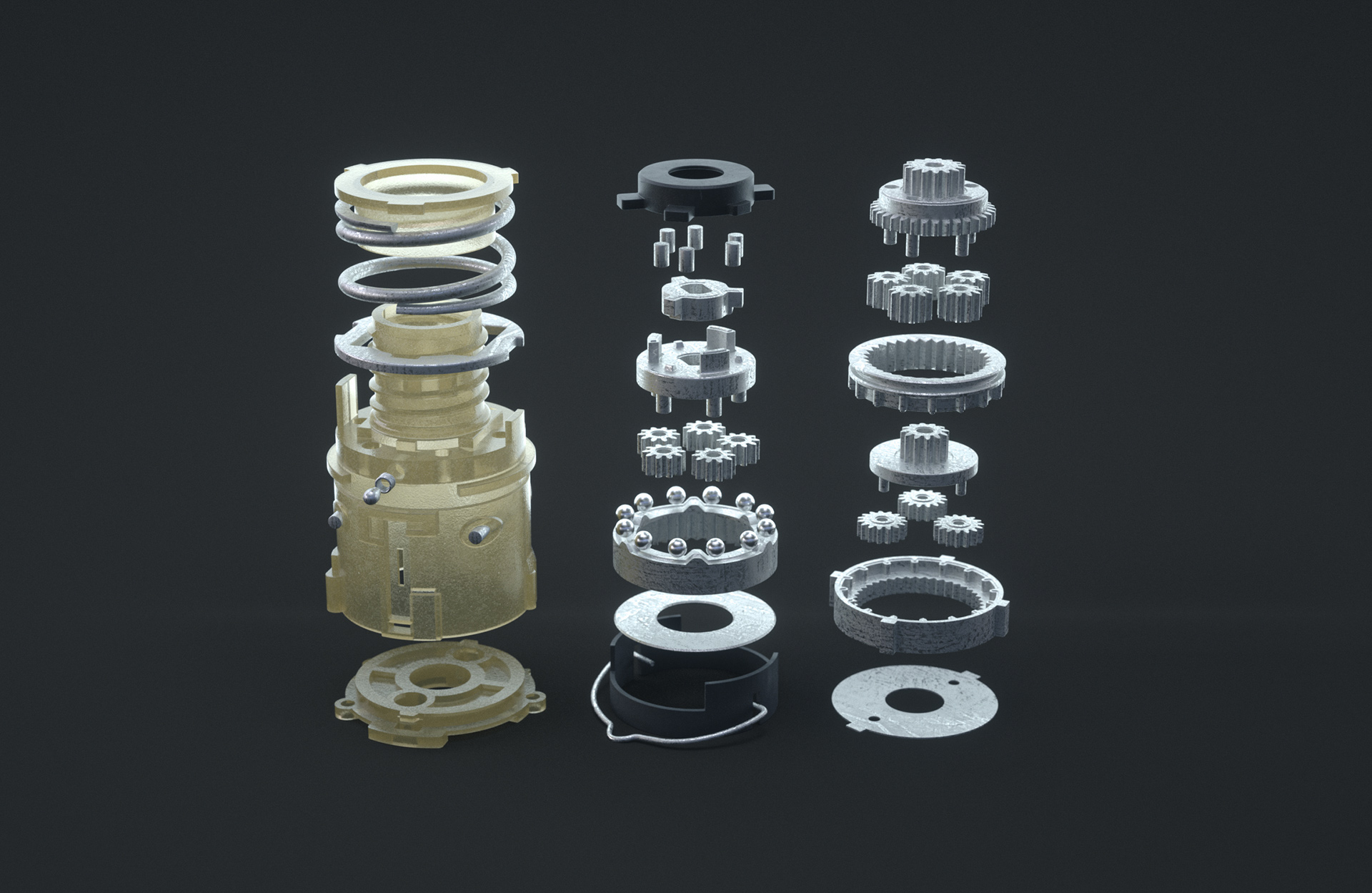

Torque, gearbox assembly
Torque, gearbox assembly

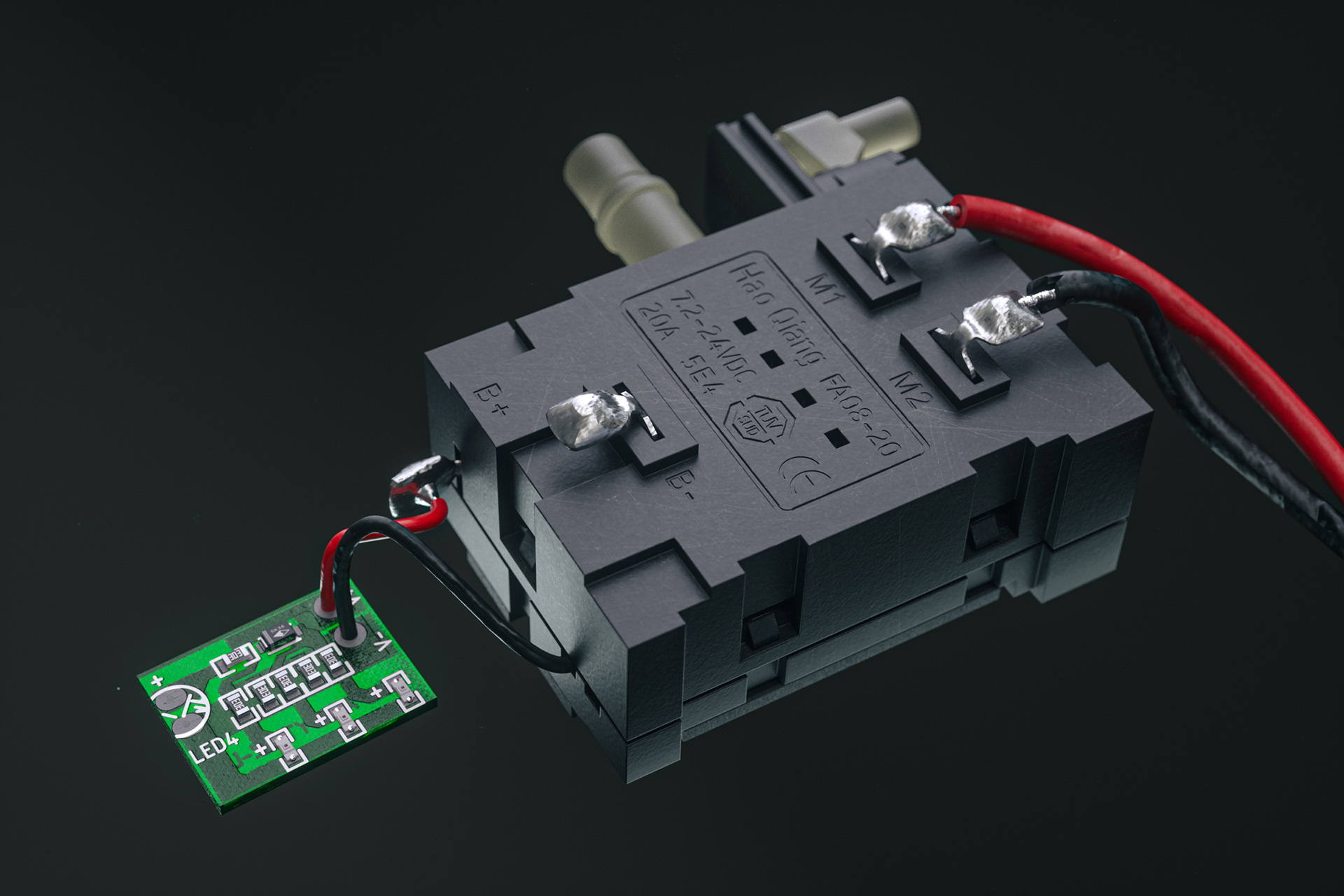

Torque, trigger switch assembly
Torque, trigger switch assembly

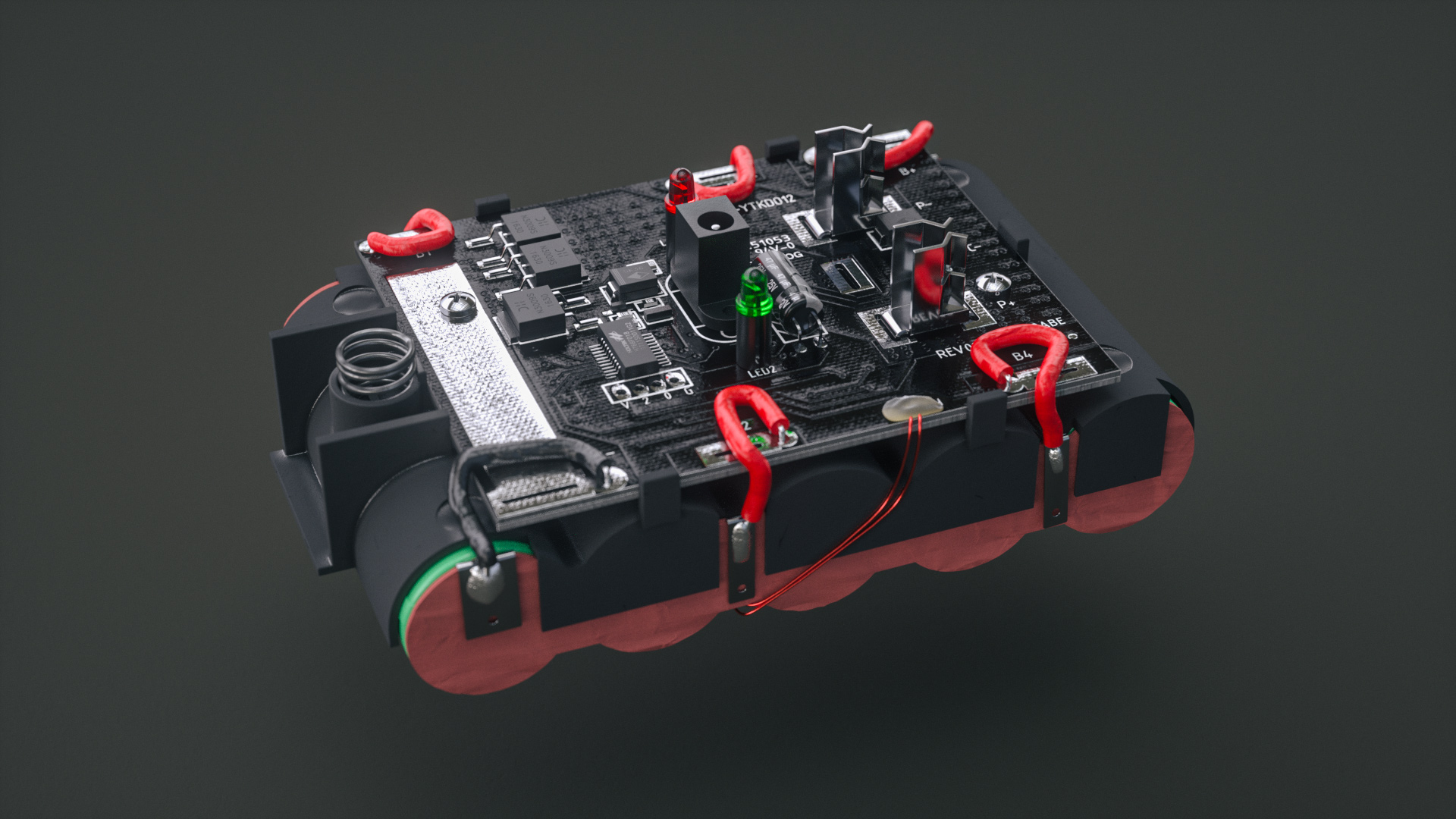

Torque, battery assembly
Torque, battery assembly

Torque, variants
Torque, variants
